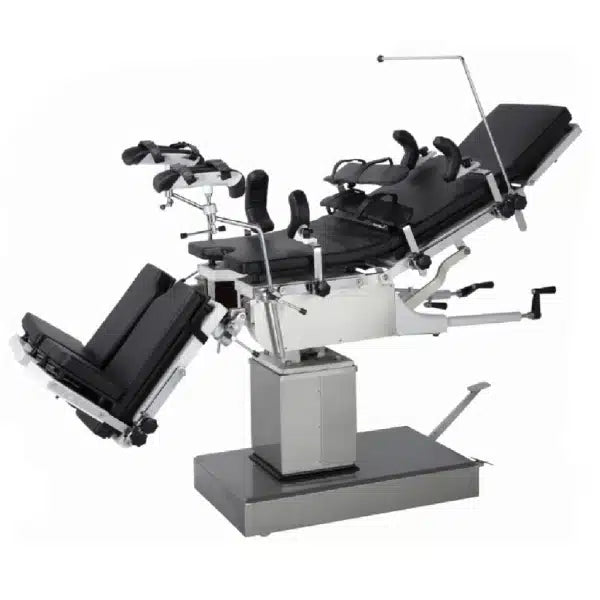

Technical Parameter:

1. Double table top, can put x-ray film cassette, suit for x-ray examination when you operate.
2. Stand column, base shell by stainless steel, forked leg plate, down fold 90°, extension 90°.
3. Head operating universal table.
4. The rise and drop of operating table was handled by pedaling the oil pump, other various movements were handled by the mechanical transmission head.
5. Table Height Range: 800mm ~ 1050mm
6. Length and width: 2000mm × 500mm
7. Lateral Tilt (left/right): ≥20° / ≥20°
8. Trendelenburg / Reverse: ≥50° / ≥30°
9. Back Section up/down: ≥80° / ≥10°
10. Head Section up/down: ≥70° / ≥90°
11. Leg Section down: ≥90°, extension 90°
12. Waist board lifting: 120mm
