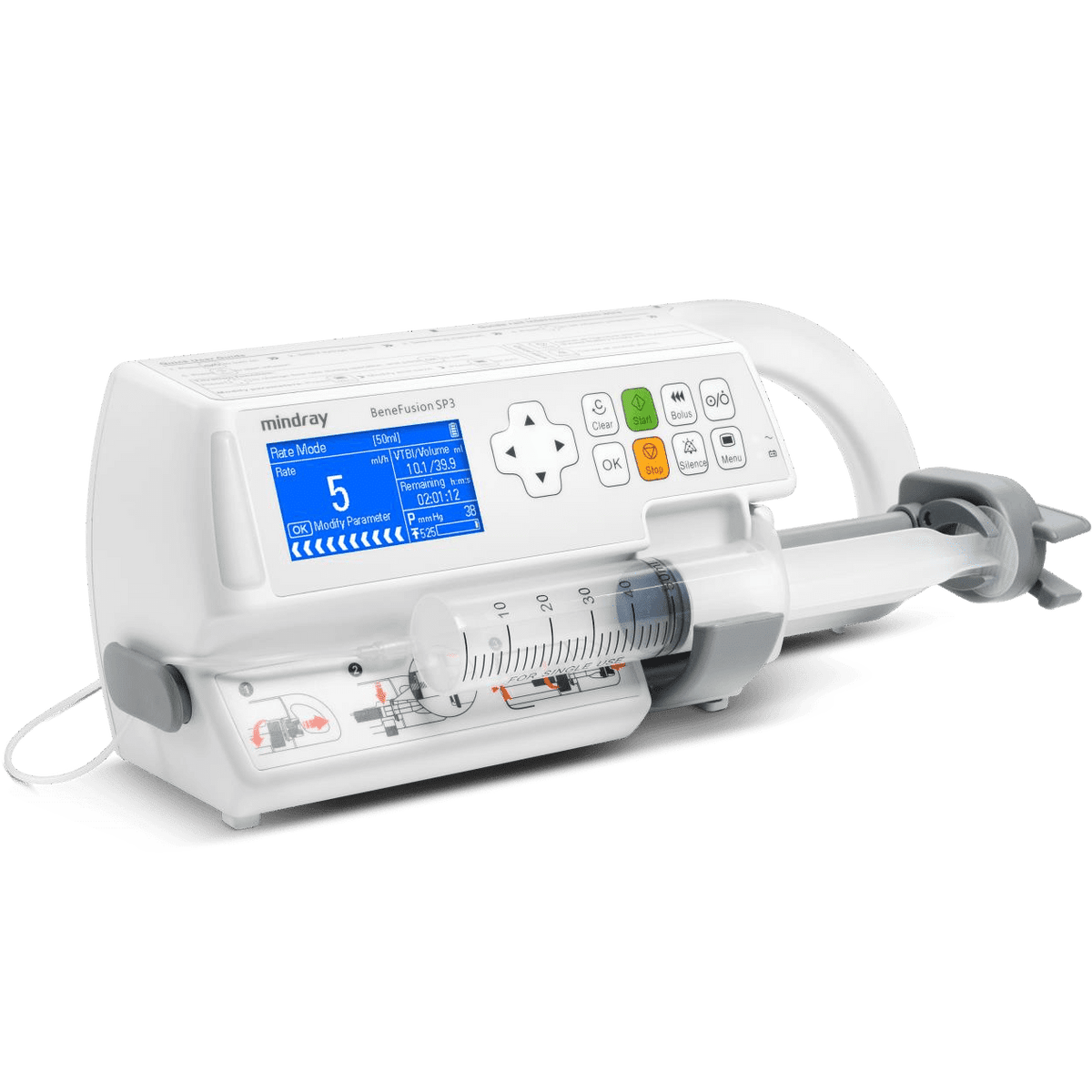

Mindray BeneFusion SP3 — Advanced Multi-Mode Syringe Pump for Precision Infusion Therapy
The BeneFusion SP3 is a compact, feature-rich syringe pump designed to support complex medication delivery protocols in demanding...
Couldn't load pickup availability
Mindray BeneFusion SP3 — Advanced Multi-Mode Syringe Pump for Precision Infusion Therapy
The BeneFusion SP3 is a compact, feature-rich syringe pump designed to support complex medication delivery protocols in demanding clinical environments. With nine selectable infusion modes, an integrated drug library, and a comprehensive multi-level alarm system, it gives clinicians precise control and added safety across a wide range of therapeutic applications — from general infusion to critical care titration.
Versatile Infusion Modes
Supports Rate Mode, Body Weight Mode, Time Mode, Intermittent Mode, Sequential Mode, Loading Dose Mode, Micro-infusion Mode, TIVA Mode, and Ramp Mode — covering routine therapy through advanced anesthesia and critical-care dosing.
Built-In Drug Library
Stores up to 200 drugs (togglable on/off), reducing programming errors and supporting standardized dosing protocols.
Clear, Informative Display
A 3.0" LCD monochrome screen (240×128 pixels, brightness adjustable across 8 levels) shows infusion rate, VTBI, total volume, pressure limit and status, drug name, remaining time, alarm status, battery status, and syringe size/brand.
Comprehensive Safety Alarms
Three-tier audible and visual alarm system (High/Medium/Low) covering occlusion, battery status, syringe status, system errors, and more — with sound volume adjustable across 8 levels.
Adjustable Occlusion Detection
14 selectable occlusion pressure levels (75–1050 mmHg), with 4 selectable pressure units (mmHg/kPa/bar/psi) and anti-bolus protection to reduce unexpected bolus delivery when an occlusion clears.
Data & History Tracking
Logs up to 2,000 history records, with volume collection available in four methods: 24-hour total, current total, period, and timing.
| Parameter | Details |
|---|---|
| Weight | < 1.8 kg |
| Dimensions | 340 × 125 × 135 mm |
| Accuracy | ≤±2% |
| Flow Rate Range | 0.1–2000 ml/h |
| Minimum Increment | 0.01 ml/h |
| Preset Volume (VTBI) | 0.1–9999 ml (0.1 ml increment) |
| Preset Time | 00:00:01–99:59:59, adjustable |
| KVO Rate | 0.1–30 ml/h (default 0.5 ml/h) |
| Purge Rate | 0.1–2000 ml/h |
| Bolus Rate | 0.1–2000 ml/h (automatic or manual) |
| Syringe Compatibility | 5/10/20/30/50/60 ml, automatic size recognition |
| Auto-Lock Time | 1–5 minutes, selectable, ON/OFF switchable |
Supports an extensive range of dosing units including µg/kg/min, mg/kg/h, mmol/kg/min, IU/kg/h, mEq/min, and many more — enabling precise dosing calculations across diverse drug protocols.
| Parameter | Details |
|---|---|
| Operating Time | ≥6 hrs @5ml/h (standard); ≥12 hrs @5ml/h (optional) |
| Charging Time | ≤5 hrs (standard); ≤10 hrs (optional) |
| Interface | RS232, nurse call connector, DC adapter |
| Power Supply | 100–240V~, 50/60Hz, 0.4–0.14A |
| IP Rating | IP34 (water and dust resistance) |
| Operating Temperature | 5–40°C (storage: -20 to 60°C) |
| Humidity | 15–95% operating (10–95% storage) |
