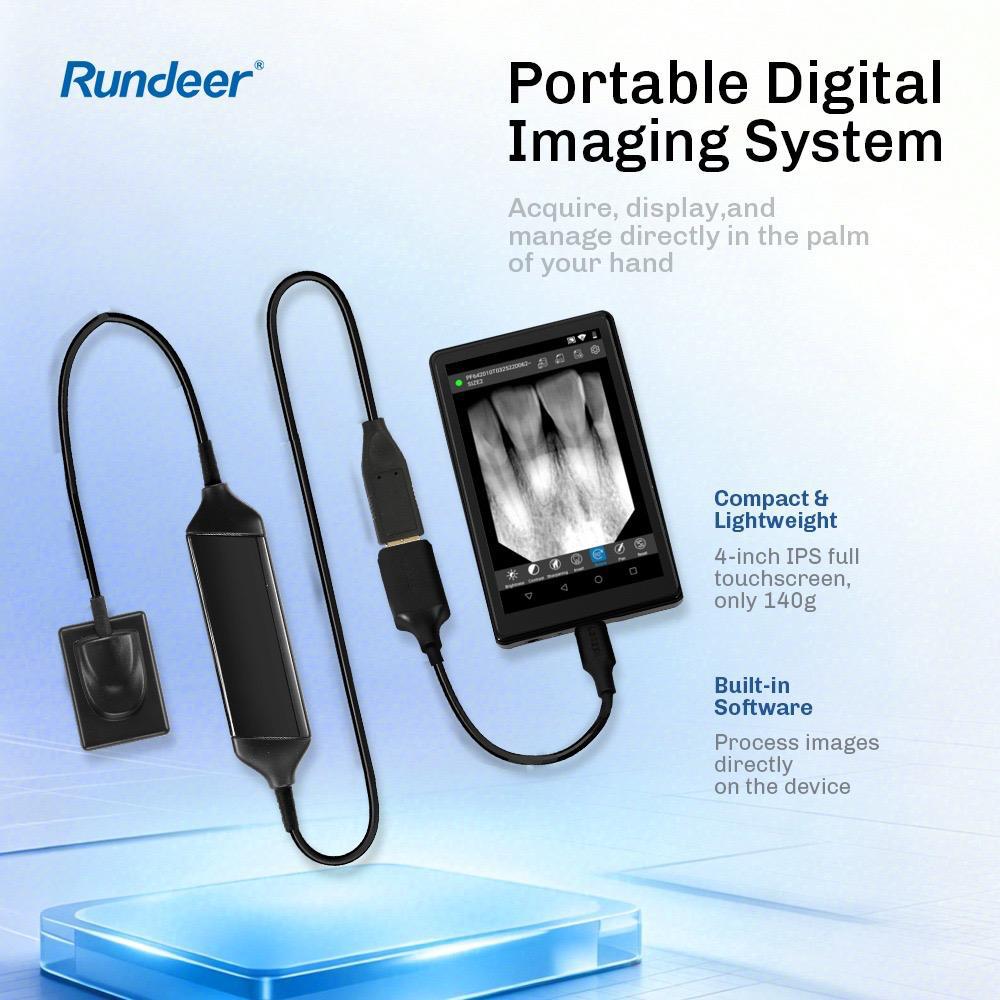

The RVG X-Ray Sensor DS530 #1.3 is a digital dental imaging sensor built on APS CMOS technology, designed to deliver fast, high-resolution intraoral X-ray images. With a simple USB connection and low power consumption, it offers a straightforward, efficient imaging solution for dental practices.
| Specification | Value |
|---|---|
| Model | DS530 |
| Chip Type | APS CMOS |
| Pixel Size | 18.5 µm |
| Sensor Dimensions | 39 × 28.5 × 6 mm |
| Active Area | 30 × 22.5 mm |
| Active Pixel Array | 1600 × 1200 |
| Image Pixel | 1604 × 1204 |
| Voltage (via USB) | 5.0V ±0.5 |
| Current (via USB) | <500 mA |
| Power Consumption | <1W |
| Digitization | 12/14/16 bit |
| Image Acquisition Time | 3–4 seconds |
| Resolution | 27 lp/mm |
| Signal Output | USB |
